Stainless steel pneumatic actuator

The vertical pneumatic actuator is a vertical rotary actuator. It has the characteristics of large torque, small size, flexible function configuration and fast opening and closing speed. The actuator can be applied to various angles such as butterfly valve and ball valve. On the stroke valve. Various automatic control functions such as valve position feedback, valve control unit, process controller, valve intelligent positioner, etc. can also be configured.

We are here to help!
Contact Us
Features

Technical Features
●Cylinder specifications: Φ70, 85, 114, 133, 168
●Air source pressure: 4-7bar
●Working temperature: -10℃ to 80℃
●Square core with valve: 8*8, 9*9, 10*10, 11*11, 14*14mm,
    also available in custom sizes
●Execution mode:single acting(gas/spring),double
    acting(gas/gas),normal closed, normal opened.
●Execution action: rotation stroke (corner stroke)

Theory Of Operation

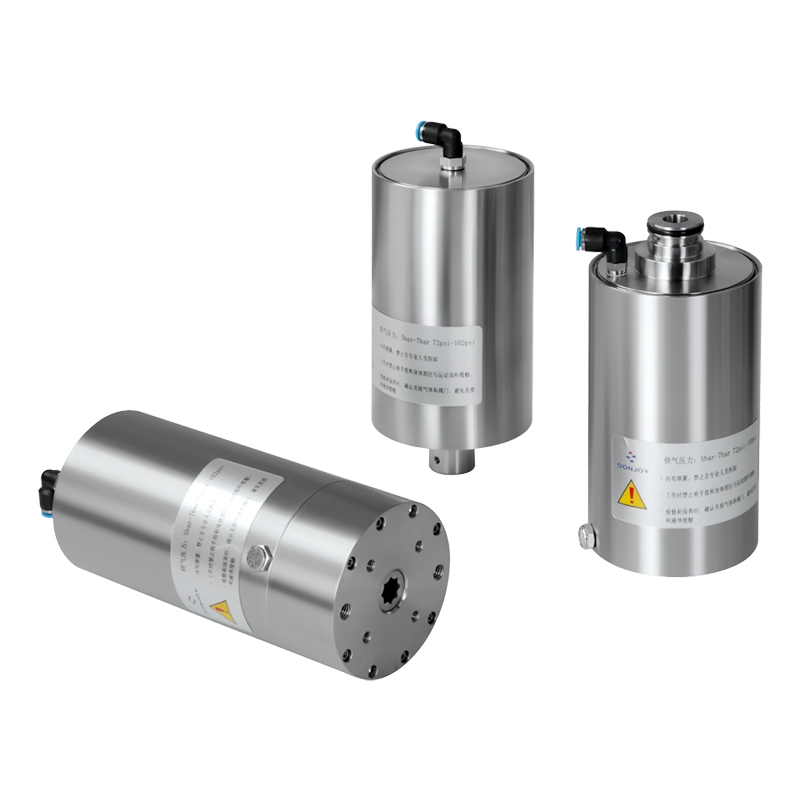

General Purpose Pneumatic Actuator
Various controllers can be installed by replacing
the connectors
