Technical Features
●Specifications: 1.5"-6", DN40-DN150
●Material: 316L/1.4404, ASME BPE 316L 1.4435 NB2 Fe≤0.5%
●Pressure: vacuum to 10bar (1.0 MPa)
●Temperature: -20℃ to +150℃, Depending on the seal material
●Sealing: EPDM FKM HNBR
●Connection standard: DIN SMS ISO IDF RJT BS4825 ASME BPE 3A DIN11864 DIN11853
●Connection method: Thread, clamp, welding, flange
●Drive mode: pneumatic
●Finish: Ra≤0.6μm; MP=Ra≤0.3μm; EP=Ra≤0.3μm
●Certification: FDA 177.2600; 3A-85-03; Glass II USP Glass VI Chapter 88; GB4806.11; EG VO/1935-2004; PED/97/23/EC.

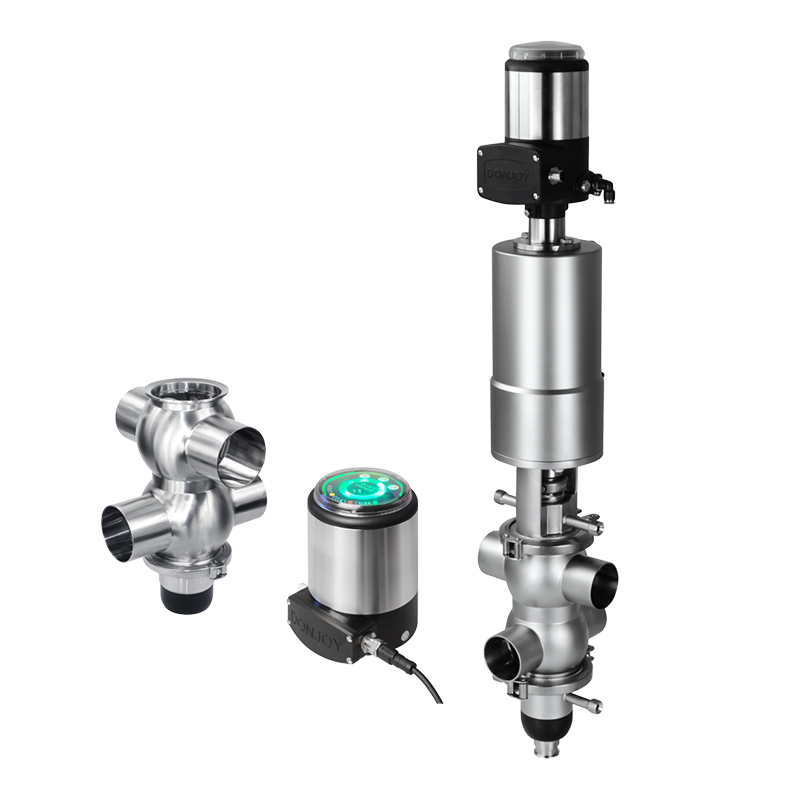

The anti-mixing double seat valve is a valve with technical characteristics such as online in-situ CIP cleaning, SIP sterilization, leakage detection, double-layer sealing protection, and prevention of the risk of medium contamination. It also has a very flexible valve body combination and Functional configuration such as valve control unit, feedback device, position sensor, etc. The design of the valve is completely based on the high cleanliness requirements of the United States 3-A-85-03 design.

Many anti-mixing valves are used in valve array systems, because the valve has the technical characteristics of online in-situ CIP cleaning, sterilization, self-draining, no dead ends, no retention, etc., and has very flexible configurations such as position feedback devices and valves Automatic control systems such as control units and position sensors.

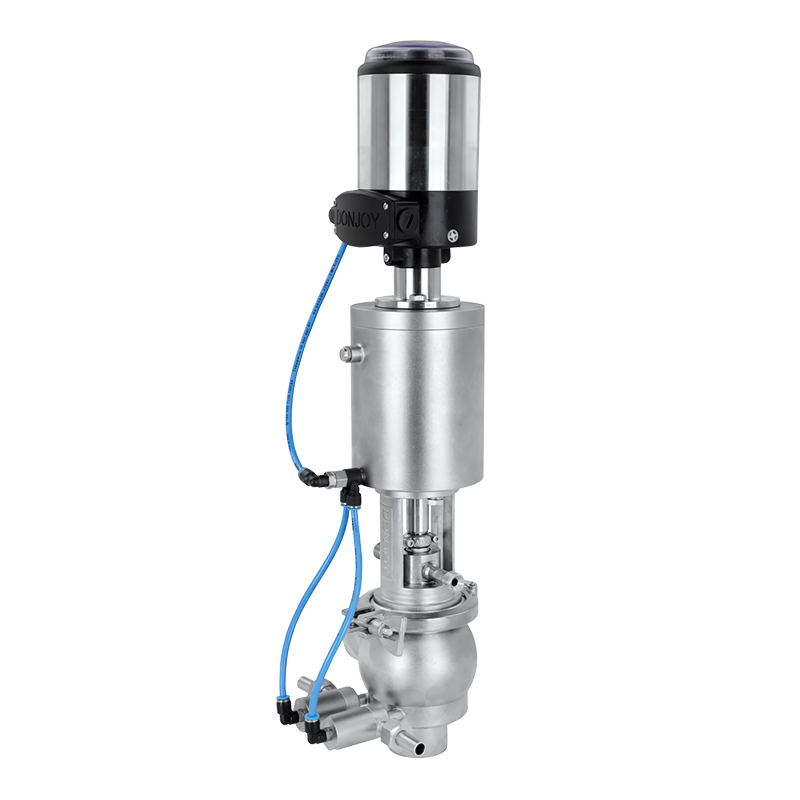

The EC-series is a mixed-proof valve that uses externally introduced CIP and SIP cleaning and sterilization. It has double-layer sealing protection, leakage can be found, and drained to prevent the risk of material contamination. And there is a very flexible valve body combination application.
