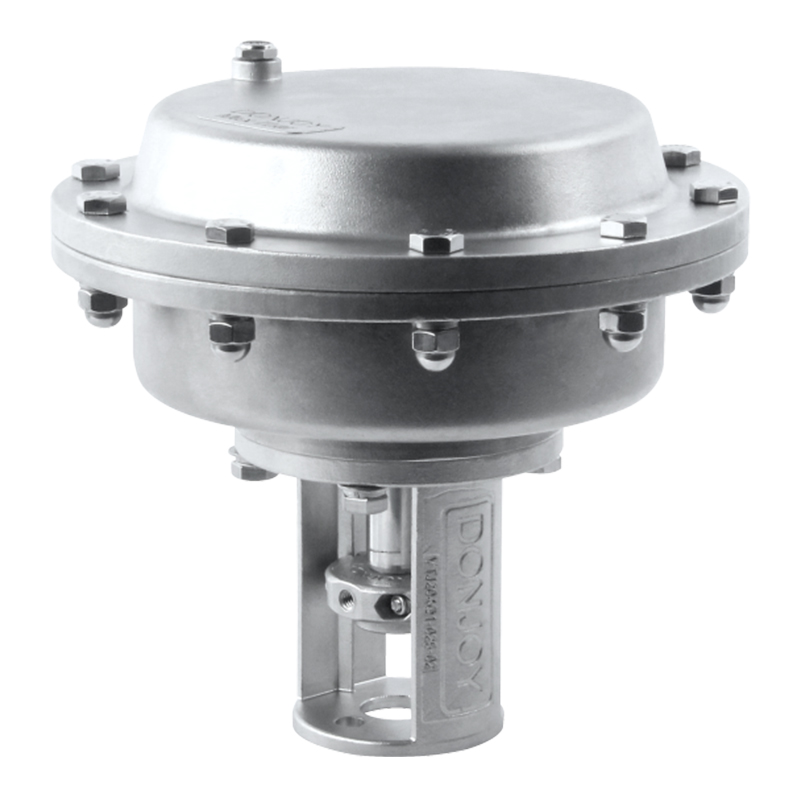

Film-type pneumatic actuator

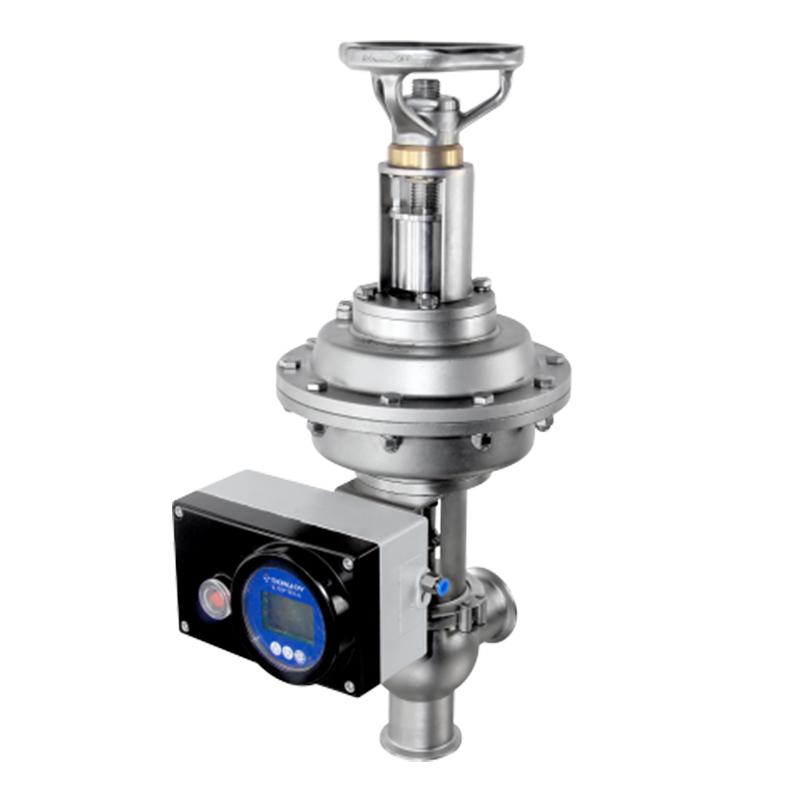

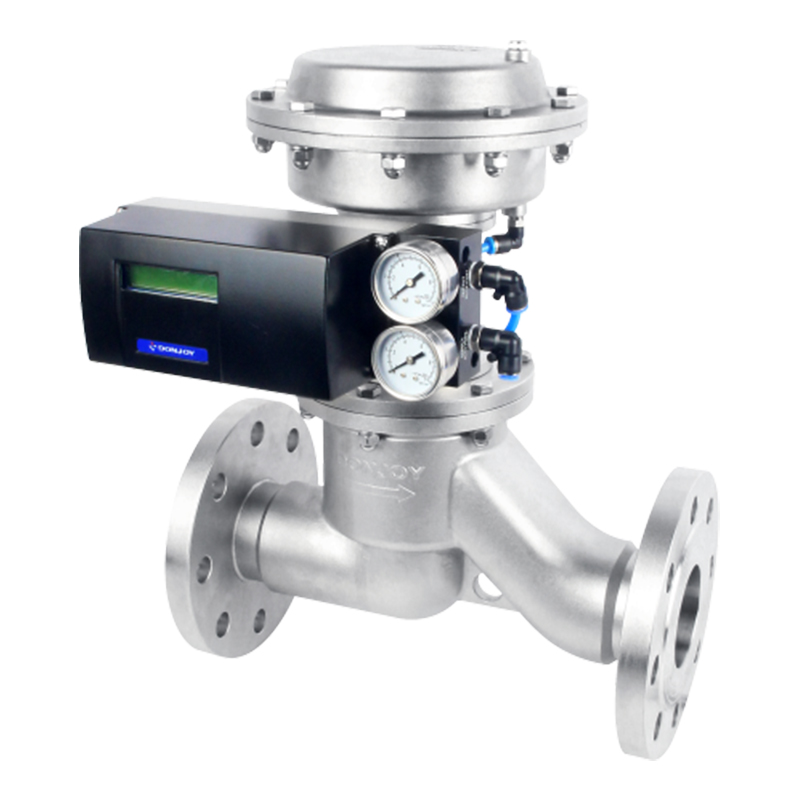

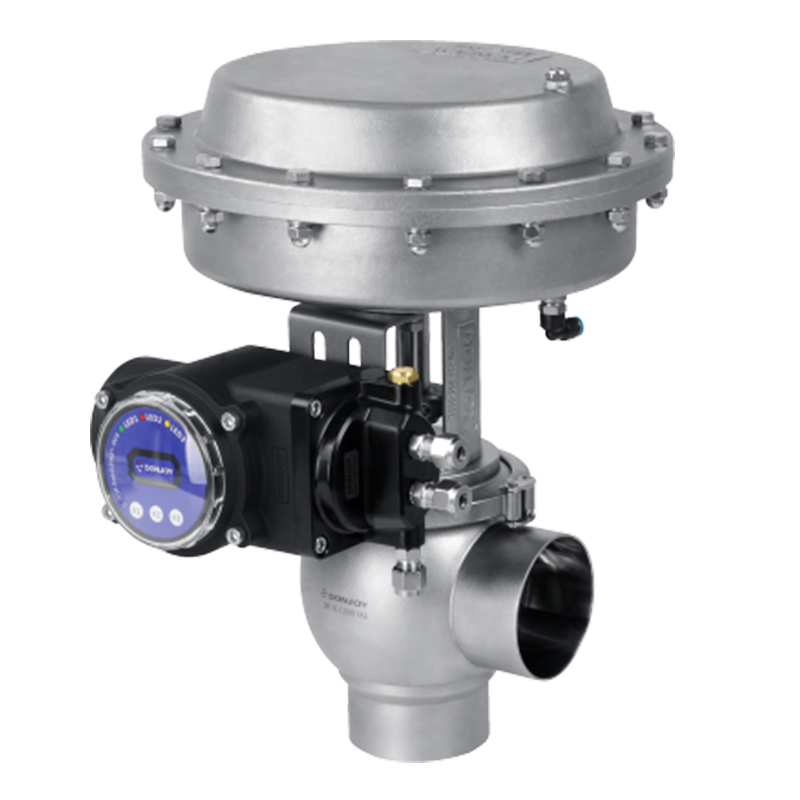

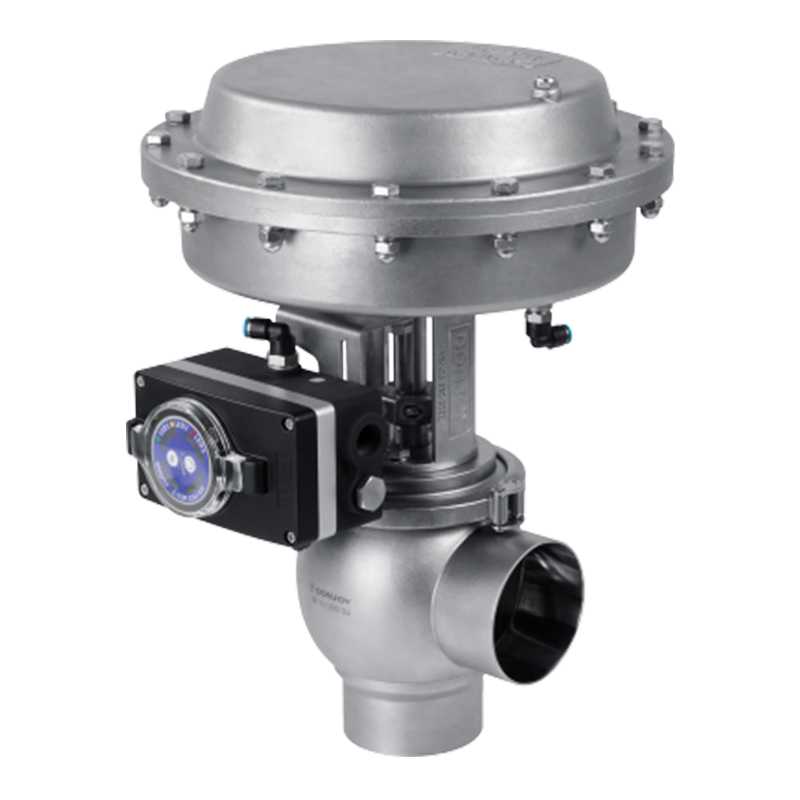

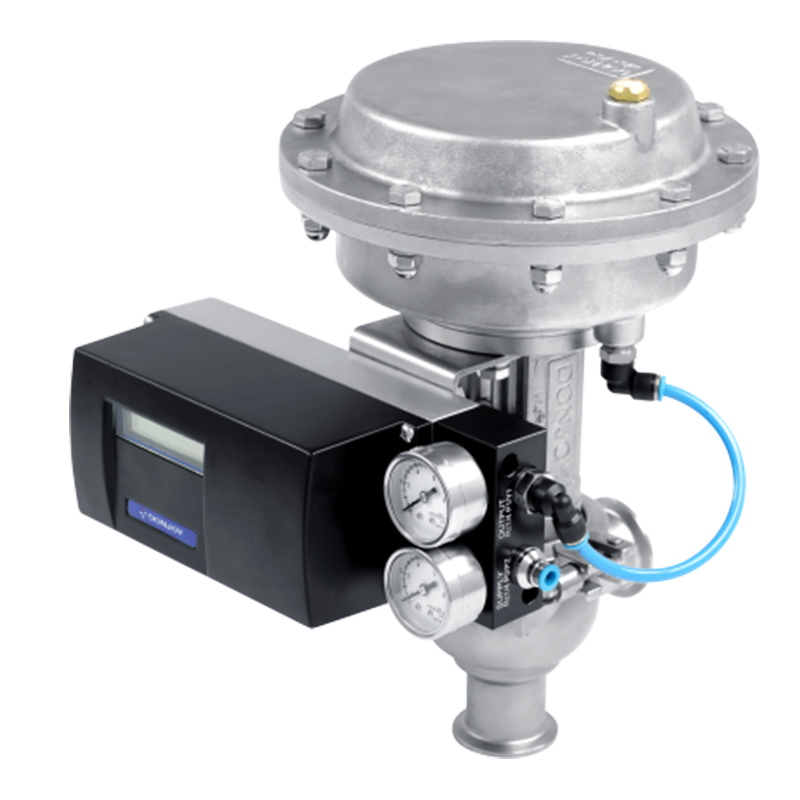

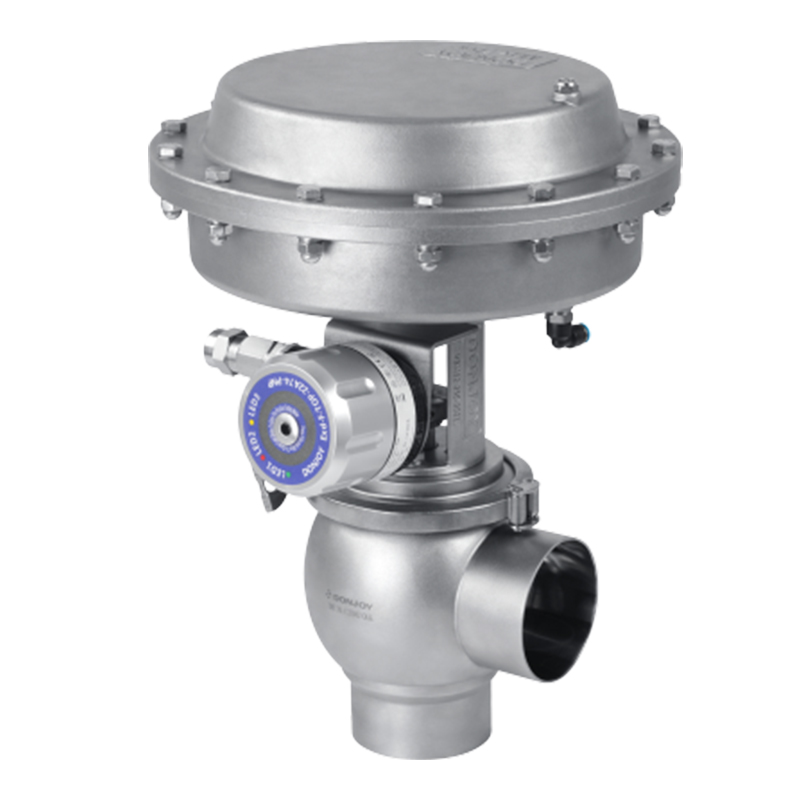

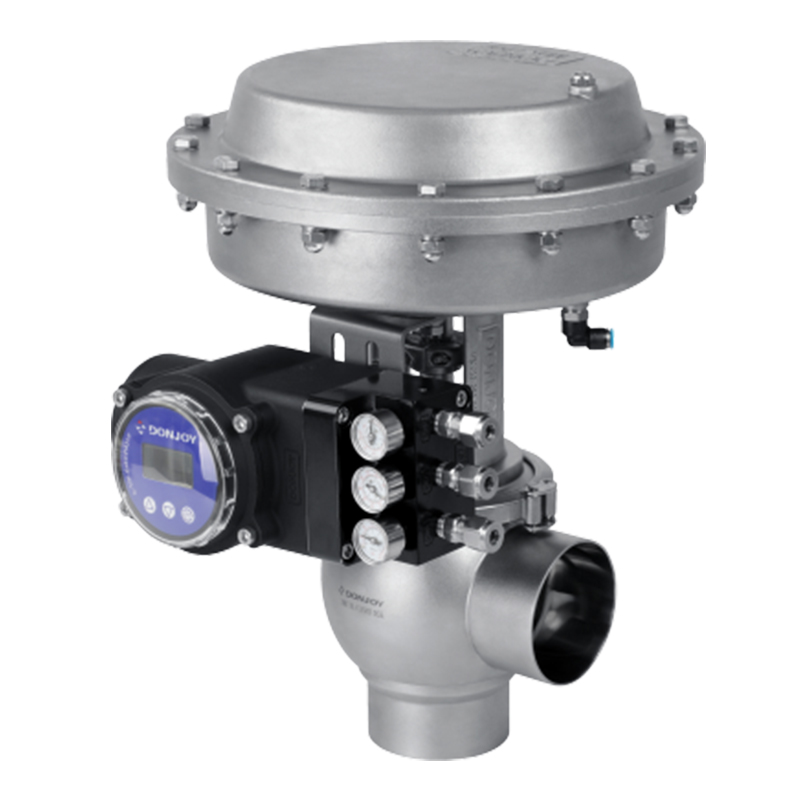

Film-type pneumatic actuator is a vertical linear actuator. The actuator has the technical characteristics of flexible configuration and combination, fast opening and closing speed, all stainless steel material, etc.; the actuator can be applied to globe valves, seat valves, etc. Various linear stroke valves. Various automatic control functions can also be configured, such as valve position feedback, valve control unit, process controller, valve intelligent positioner, etc.
Technical Features
●Cylinder specifications: Φ150, 250
●Air source pressure: 4-7bar
●Working temperature: -10℃ to 80℃
●Execution mode: sigle acting(gas/spring),double acting(gas/gas),normal closed, normal opened.
●Execution action: linear stroke (straight stroke)

We are here to help!
Contact Us
Features

●Cylinder specifications: Φ150, 250
●Air source pressure: 4-7bar
●Working temperature: -10℃ to 80℃
●Execution mode: sigle acting(gas/spring),double acting(gas/gas),normal closed, normal opened.
●Execution action: linear stroke (straight stroke)

Theory Of Operation

Film-type pneumatic actuator is a vertical linear actuator. The actuator has the technical characteristics of flexible configuration and combination, fast opening and closing speed, all stainless steel material, etc.; the actuator can be applied to globe valves, seat valves, etc. Various linear stroke valves. Various automatic control functions can also be configured, such as valve position feedback, valve control unit, process controller, valve intelligent positioner, etc.
Technical Features
