Diaphragm valve

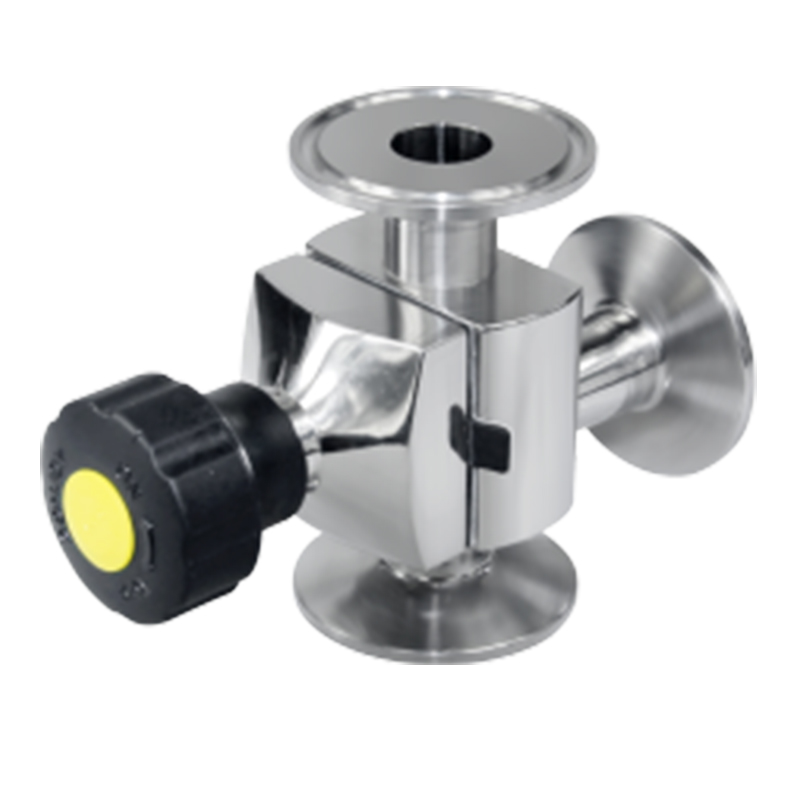

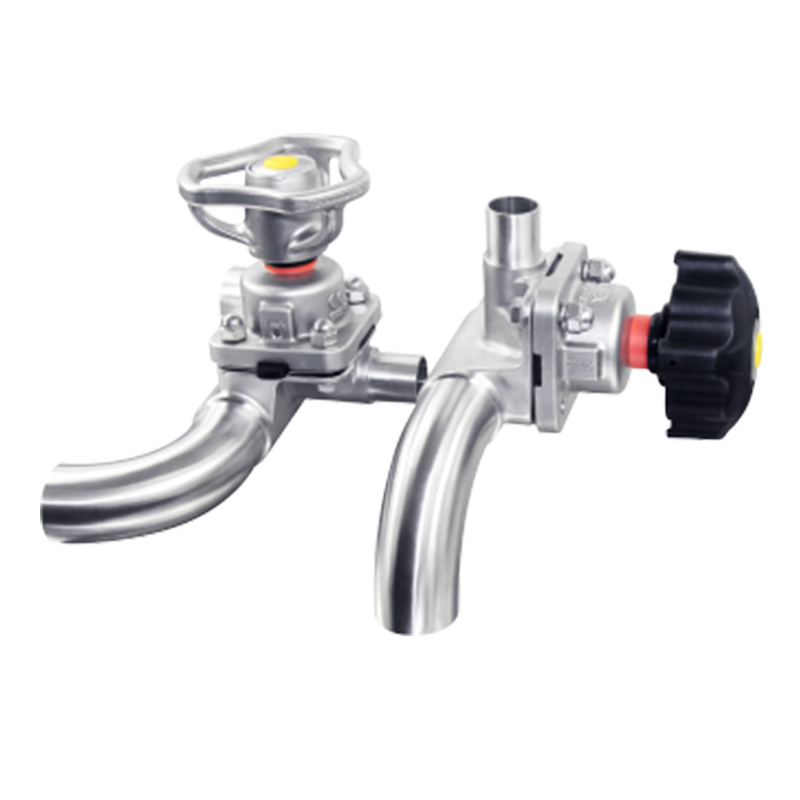

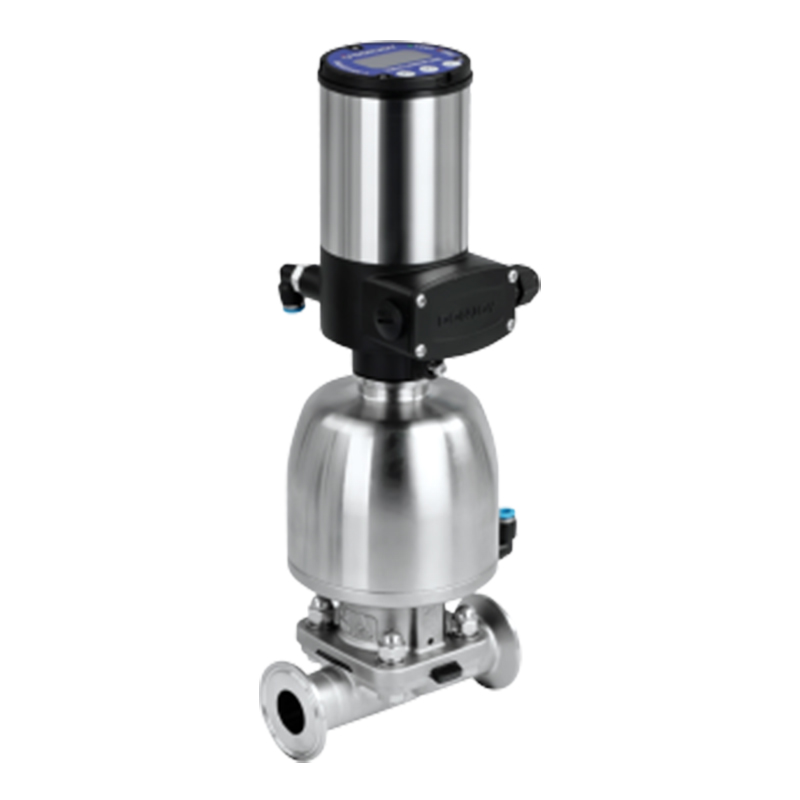

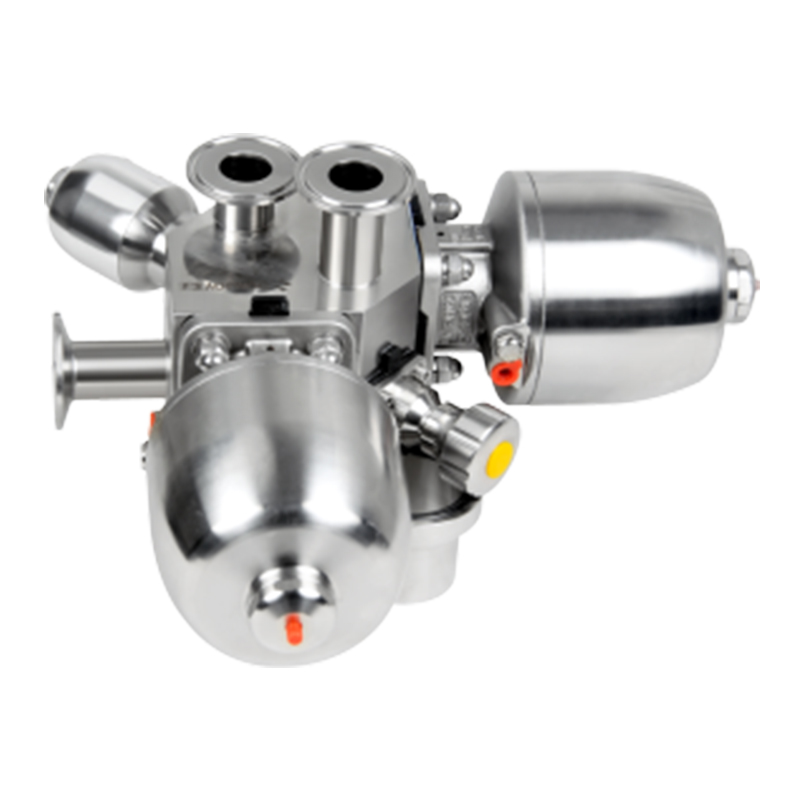

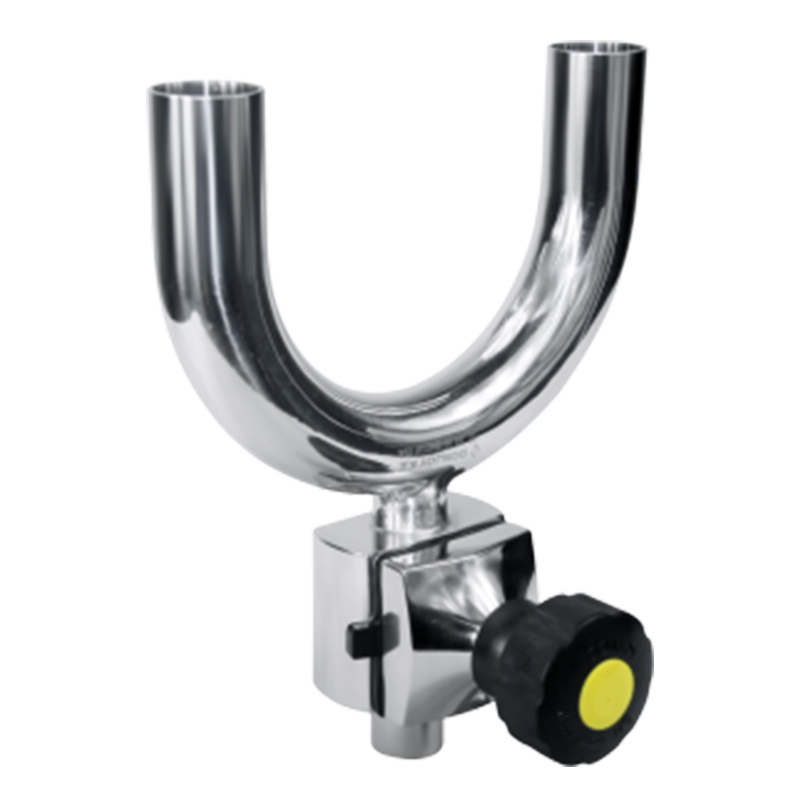

Donjoy has been manufacturing high-cleanliness diaphragm valves for 20 years and has applied more than 500,000 pieces in various fields, involving more than 300 varieties, such as 2-way, 3-way, U-shaped 3-way, multi-ports, adjustable, manual, pneumatic, electric, etc. And they are interchangeable.

We are here to help!
Contact Us
Features

Certificates
●All synthetic resin and additive are comply with FDA certification
●Material chemical composition, physical properties and manufacturing process are documented
●All diaphragm seal consistency with FDA certificate
●-21-CFR-FDA 177.1550 perfluorocarbon synthetic resin
●-21-CFR-FDA-177.2600 rubber
●USP 28 class VI CHAPTER 87 IN VITON and CHAPTER 88 IN - VITON consistency the authentication
●3-A consistency authentication NO: 54-02-1580
●EN 10204-3.1 Certificate on traceability of stainless steel Chemical composition synthesis
●CE-PED/97/23/EC N.O.: TUV DGR 0036-QS-1153-14

Technical Features
●Size: 1/4"-4",DN6-DN100
●Material: 316L/1.4404, ASME BPE 316L 1.4435 NB2 Fe≤0.5%
●Pressure: vacuum to 10bar (1.0 Mpa)
●Temperature: -20℃ to +150℃, Depending on the seal material
●Seal: EPDM SILICON FKM FFKM HNBR NBR EPDM+PTFE
●Connection standard: DIN SMS ISO IDF RJT BS4825 ASME BPE 3A DIN11864 DIN11853
●Connection way: threaded, clamp, welding, flange
●Drive mode: manual, pneumatic, electric
●Roughness: Ra≤0.6μm; MP=Ra≤0.3μm; EP=Ra≤0.3μm
●Certification: FDA 177.2600; 3A-18-03; Glass II USP Glass VI Chapter 88; GB4806.11; EG VO/1935-2004; PED/97/23/EC.

Theory Of Operation

Donjoy has been manufacturing high-cleanliness diaphragm valves for 20 years and has applied more than 500,000 pieces in various fields, involving more than 300 varieties, such as 2-way, 3-way, U-shaped 3-way, multi-ports, adjustable, manual, pneumatic, electric, etc. And they are interchangeable.

Download
File Description Language Size
Related Videos
Download The Latest Product Information
Technical Service
Send Message
sub

According to ASME BPE, EHEDG, FDA and 3A standard, DONJOY got certificates of PED-97/23/EC and MD-06/42/EC issued by TUV, ……
