Technical advantages

●Ultra-low shear conveying to effectively ensure media integrity

●High suction capacity, inlet negative pressure can reach -0.85bar

●Low-pulse conveying can effectively prevent pipeline vibration, make the medium convey smoothly and quickly, and also increase the measurement accuracy

●The conveying process is gentle, and it is not easy to generate air bubbles

●Bidirectional operation

●Simple and fast maintenance

●All medium contacting parts comply with FDA and EC1935 standards

●Wide range of medium viscosity, 1cp to 8,000,000cps

Technical Specifications

Max flow: 93m3/h

Max pressure: 15 bar

Max Temperature: 130℃, Suitable for CIP or SIP cleaning and sterilization

Material: 1.4404/SS316L Dual-phase steel 2205, Hastelloy alloy C276

Certification: 3-A-02-12, FDA177.2600,177.1550, MD/06/42/EC

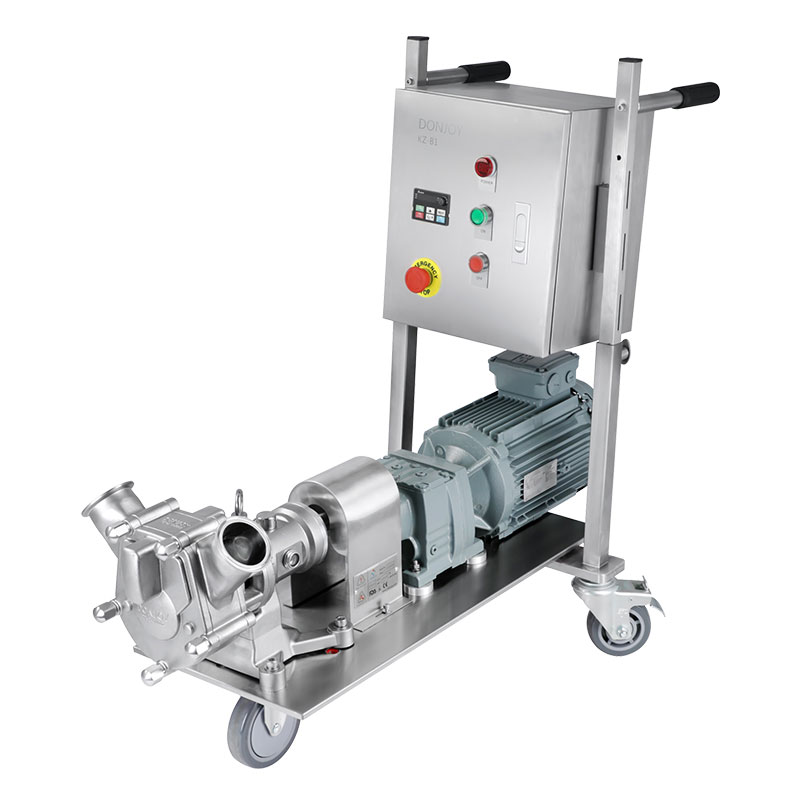

Sine pump is a new type of positive displacement pump, which has the characteristics of more compact structure, higher conveying efficiency, and wider viscosity range of applicable conveying medium. Can be widely used in food, beverage, dairy, chemical, pharmaceutical and other industries.
