Max Flow: 70m3/h

Max Head: 70M

Temperature: -20℃ ~ 150℃ / -20℃ to 150℃

Material: 304 /316L, 1.431/1.4404, ASME BPE 316L, 1.4435 NB2 Fe≤0.5% Dual-phase steel 2205, Hastelloy alloy C276

Surface treatment: ≤ Ra0.8μm, ≤ Ra0.6μm, ≤ Ra0.4μm

Mechanical seal: Single mechanical seal, double mechanical seal, details see configuration table

Inlet/Outlet: Thread, clamp, flange, Aseptic flange

Certification: 3-A-02-12(N.O.1579); MD/06/42-EC (N.O.70521616101-00); FDA 177.2600; USP CLASS-II; EG/VO1935/2004

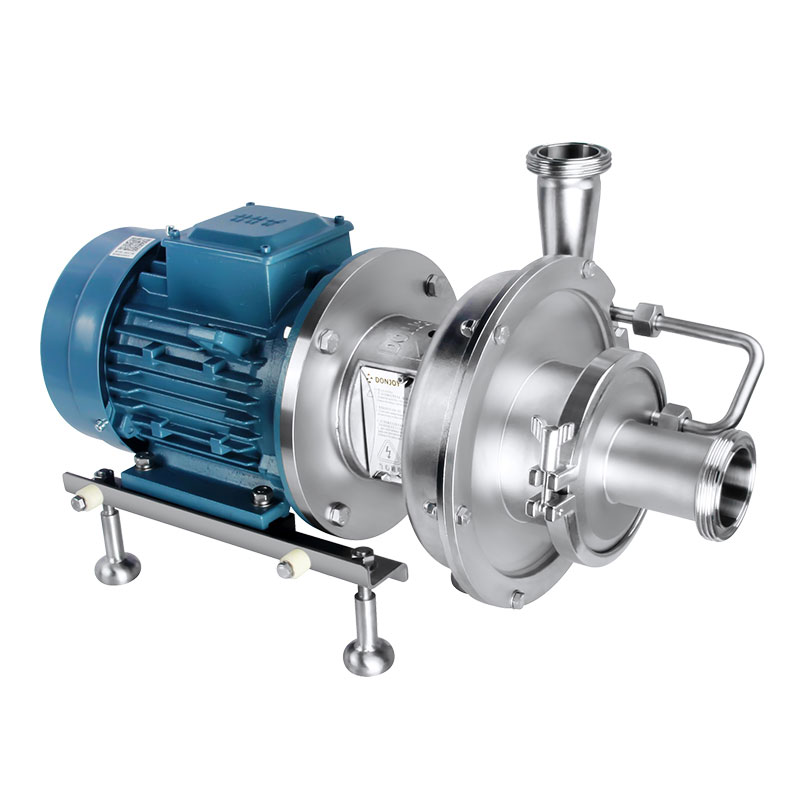

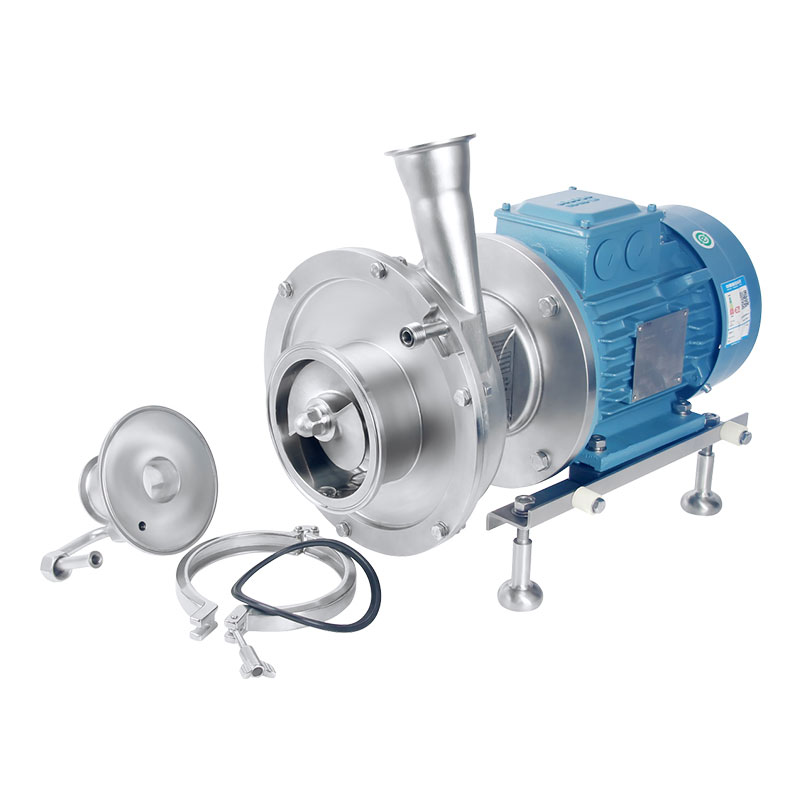

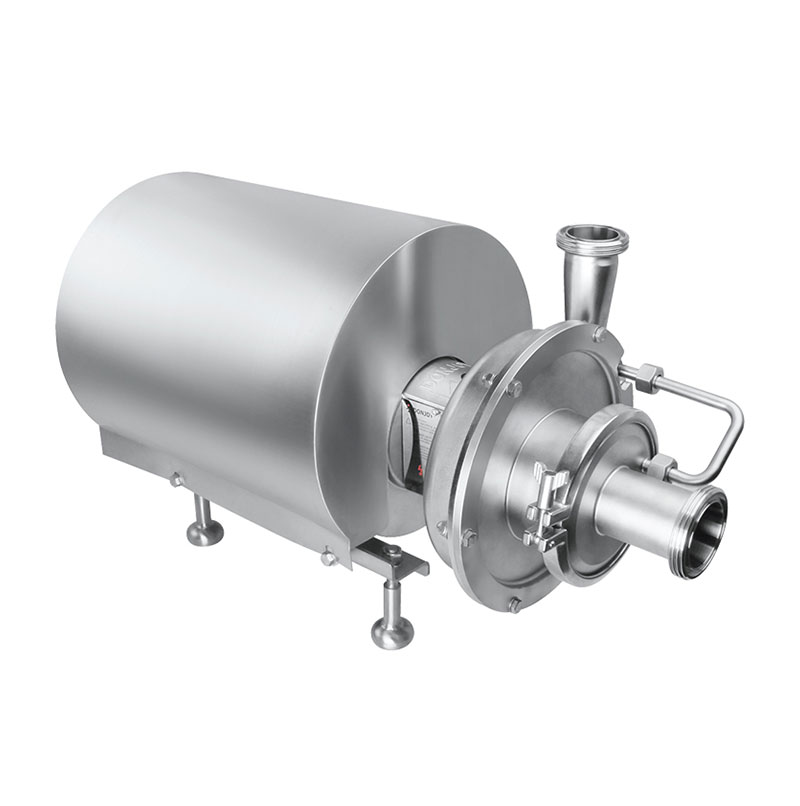

The ZLX series is a self-priming centrifugal pump. It can be used as a self-priming return circulation pump in a CIP system or as a centrifugal pump. The maximum viscosity of the conveyed material is 500CP.S (mPas). The pump has the technical advantages of high efficiency, low noise, high cleanliness, and easy cleaning of wetted parts
