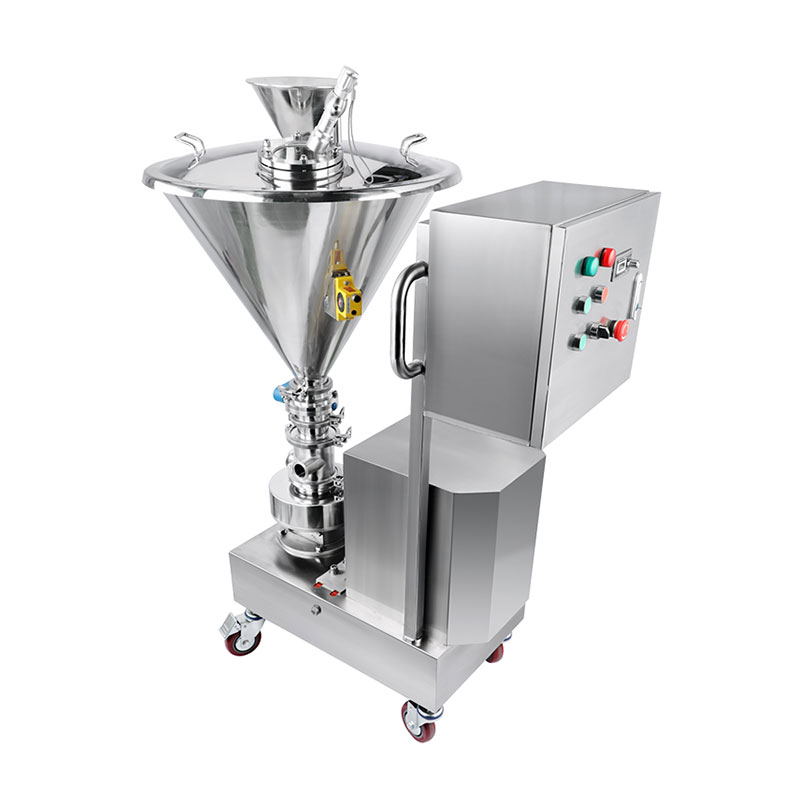

The HHQ series mixing pump is for mixing solid or powder into the liquid. It provides on-line perfect processing solutions for milk powder compounding, syrup making and brine making, etc. It also can be used for preparing solid and powder mixing, in the food and beverage, biopharmacy, traditional chinese medicine making, cosmetics and chemicals.

Technical Specifications

Max capacity of powder：9000kg/h
Max capacity of thickeners：3000kg/h (Depends on the viscosity and concentration of the material)
Max temperature ：130℃
Material：304 /316L, 1.4301/1.4404, ASME BPE 316L, 1.4435 BN2 Fe≤0.5%, Duplex Stainless steel 2205，Hastelloy alloy C276
Surface treatment：≤ Ra0.8μm, ≤ Ra0.6μm, ≤ Ra0.4μm
Mechanical seal： Single mechanical seal and double mechanical seal
Mechanical seal combination： See configuration table
Inlet/Outlet Connection：Thread, Clamp, Flange, Aseptic flange
Certification：3-A-02-12(N.O.1579); MD/06/42-EC (N.O.70521616101-00); FDA 177.2600; USP CLASS-II; EG/VO1935/2004

Very Simple And Clear Piping Layout

●Multiple tasks can be handled simultaneously.
●Ratio between liquid and powder is adjustable.
●The powder inlet is designed with a valve that controls the amount of powder inhaled. The valve can be manual and pneumatic.
●The liquid inlet is designed with a valve that controls the flow of liquid inhaled.
●The side of the hopper is designed with a vibrator to prevent the powder from accumulating and agglomerating.
●The hopper can be configured with tuning fork sensor. when work automatically, the sensor can prevent mixture ratio from inconsistent caused by low amounts of powder, and also can prevent the powder from overflowing.
