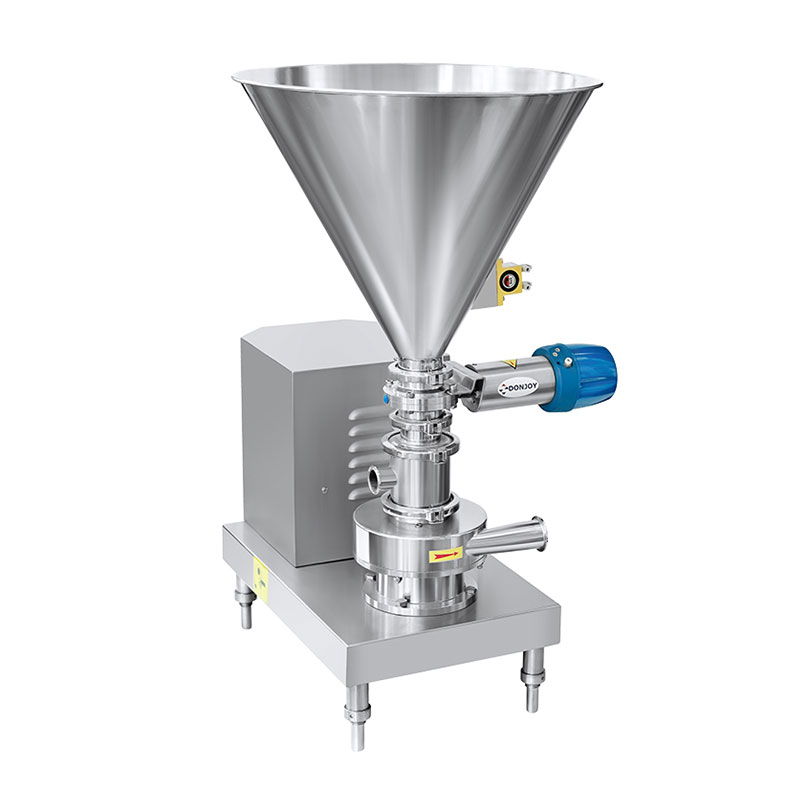

There are two series of mixing pumps:

HHQ series is typically used for mixing, emulsification, homogenization and other functions of powder, solid, liquid and other materials and liquids.

HHZ series is typically used for mixing, homogenizing, emulsification, refinement, dispersion, depolymerization and other functions of powder, solid, liquid and other materials with liquid.

Technical Specifications

Max capacity of powder: 9000kg/h

Max capacity of thickeners: 3000kg/h (Depends on the viscosity and concentration of the material)

Max temperature:130℃

Material: 304 /316L, 1.4301/1.4404, ASME BPE 316L, 1.4435 BN2 Fe≤0.5% Dual-phase steel 2205, Hastelloy alloy C276

Surface treatment: ≤ Ra0.8μm, ≤ Ra0.6μm, ≤ Ra0.4μm

Mechanical seal: Single mechanical seal and double mechanical seal

Mechanical seal combination: See configuration table

Inlet/Outlet Connection: Thread, Clamp, Flange, Aseptic flange

Certification: 3-A-02-12(N.O.1579); MD/06/42-EC (N.O.70521616101-00); FDA 177.2600; USP CLASS-II; EG/VO1935/2004

Very Simple And Clear Piping Layout

●Multiple tasks can be handled simultaneously.

●Ratio between liquid and powder is adjustable.

●The powder inlet is designed with a valve that controls the amount of powder inhaled. The valve can be manual and pneumatic.

●The liquid inlet is designed with a valve that controls the flow of liquid inhaled.

●The side of the hopper is designed with a vibrator to prevent the powder from accumulating and agglomerating.

●The hopper can be configured with tuning fork sensor. when work automatically, the sensor can prevent mixture ratio from inconsistent caused by low amounts of powder, and also can prevent the powder from overflowing.
