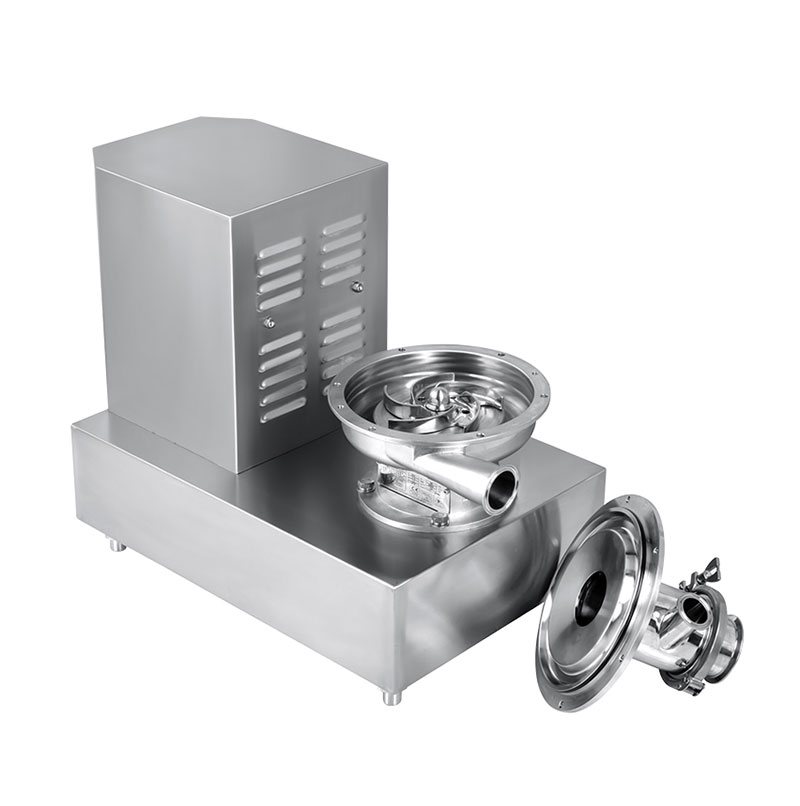

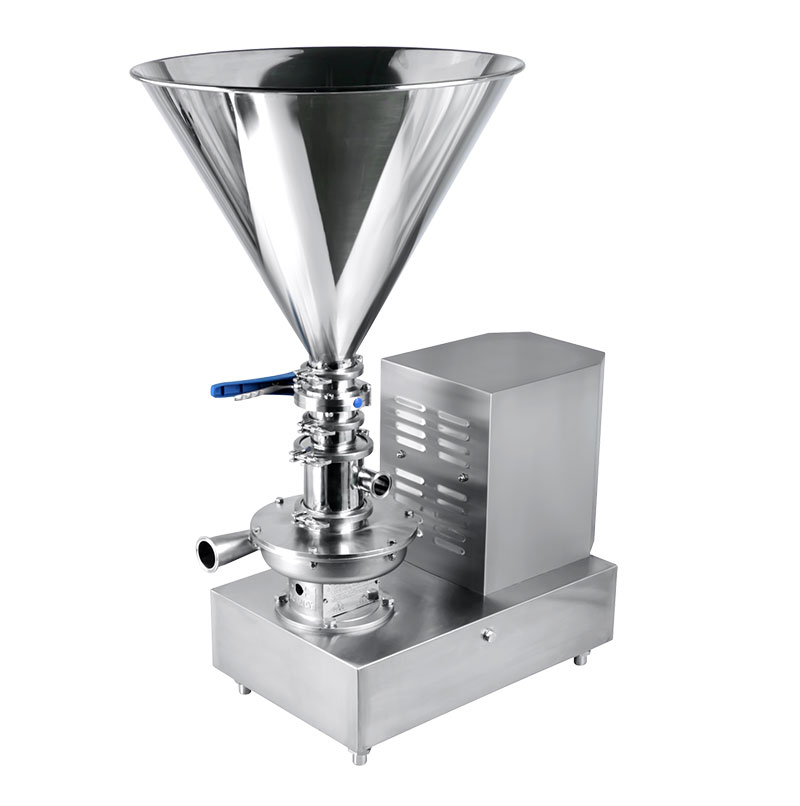

The HHQ series mixing pump is for mixing solid or powder into the liquid. It provides on-line perfect processing solutions for milk powder compounding, syrup making and brine making, etc. It also can be used for preparing solid and powder mixing, in the food and beverage, biopharmacy, traditional chinese medicine making, cosmetics and chemicals.

Technical Specifications

Max capacity of powder: 9000kg/h

Max capacity of thickeners: 3000kg/h (Depends on the viscosity and concentration of the material)

Max temperature:130℃

Material: 304 /316L, 1.4301/1.4404, ASME BPE 316L, 1.4435 BN2 Fe≤0.5% Dual-phase steel 2205, Hastelloy alloy C276

Surface treatment: ≤ Ra0.8μm, ≤ Ra0.6μm, ≤ Ra0.4μm

Mechanical seal: Single mechanical seal and double mechanical seal

Mechanical seal combination: See configuration table

Inlet/Outlet Connection: Thread, Clamp, Flange, Aseptic flange

Certification: 3-A-02-12(N.O.1579); MD/06/42-EC (N.O.70521616101-00); FDA 177.2600; USP CLASS-II; EG/VO1935/2004
