Flow: 100m3/h-1000m3/h

Head: 80M

Temperature: -20~140℃

Power: 11kw-160kw

Material: 304/316L, 1.431/1.4404, ASME BPE 316L, 1.4435 NB2 Fe≤0.5% Dual-phase steel 2205, Hastelloy alloy C276

Surface treatment: ≤ Ra0.8μm, ≤ Ra0.6μm, ≤ Ra0.4μm

Machanical seal: Single mechanical seal (see configuration scheme)

Inlet/Outlet Connection: Flanged, Aseptic flanged

Certified: 3-A-02-12(N.O.1579); MD/06/42-EC (N.O.70521616101-00);  FDA 177.2600; USP CLASS-II; EG/VO1935/2004

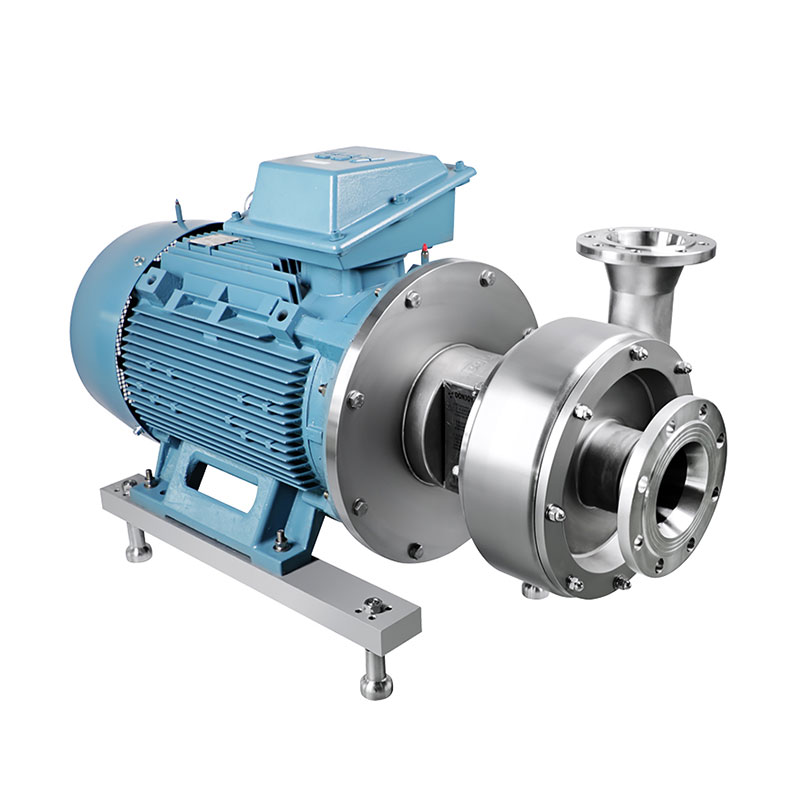

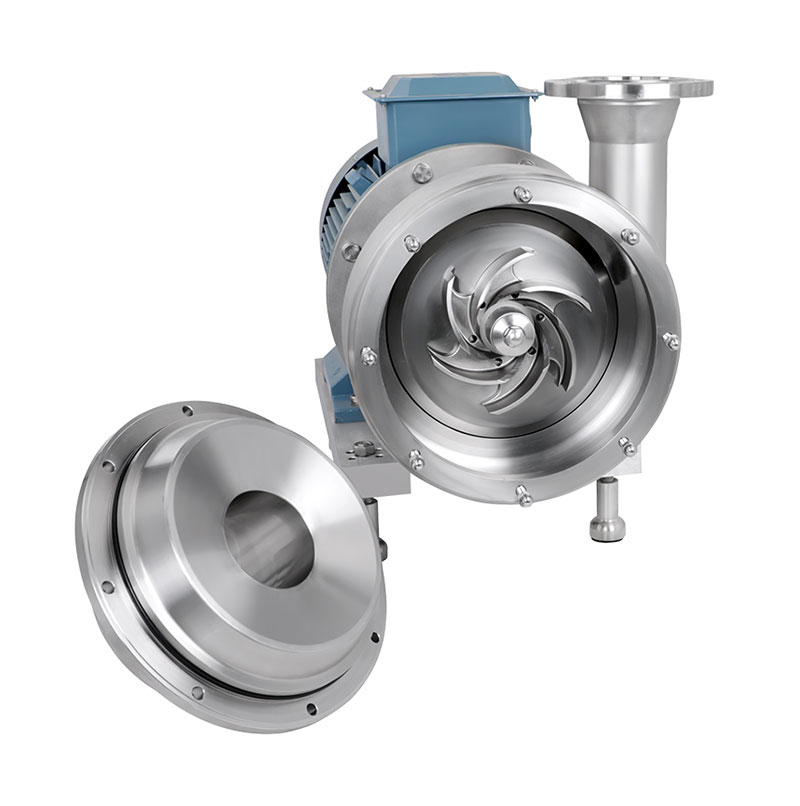

MLX series is a centrifugal pump with large flow, which adopts open impeller design and CED optimization design for hydraulic model. Under the premise of ensuring high-efficiency hydraulic performance, it can improve the flow performance of low-viscosity granular materials and reduce the shear damage to materials. The pump casing and overflow parts are made of 304/316L stainless steel. It is mainly used in the transportation of saccharified fermentation broth, wort, fruit juice and jam of food and beverages containing solid particles and low viscosity and weak corrosive materials. It can also be used in pharmaceutical, chemical, industrial water or drinking water treatment and other industrial fields.
