Max flow: 50m3/h

Max head: 210M

Max temperature: -10℃-140℃

Material: 304 /316L, 1.431/1.4404, ASME BPE 316L, 1.4435 NB2 Fe≤0.5% Dual-phase steel 2205, Hastelloy alloy C276

Surface treatment: ≤ Ra0.8μm，≤ Ra0.6μm，≤ Ra0.4μm

Machine seal: Single seal, double seal

Machine seal configuration: See mechanical seal configuration table

Inlet/Outlet connection: Threads, clamps, flanges, aseptic flanges

Certified: 3-A-02-12(N.O.1579); MD/06/42-EC (N.O.70521616101-00); FDA 177.2600; USP CLASS-II; EG/VO1935/2004

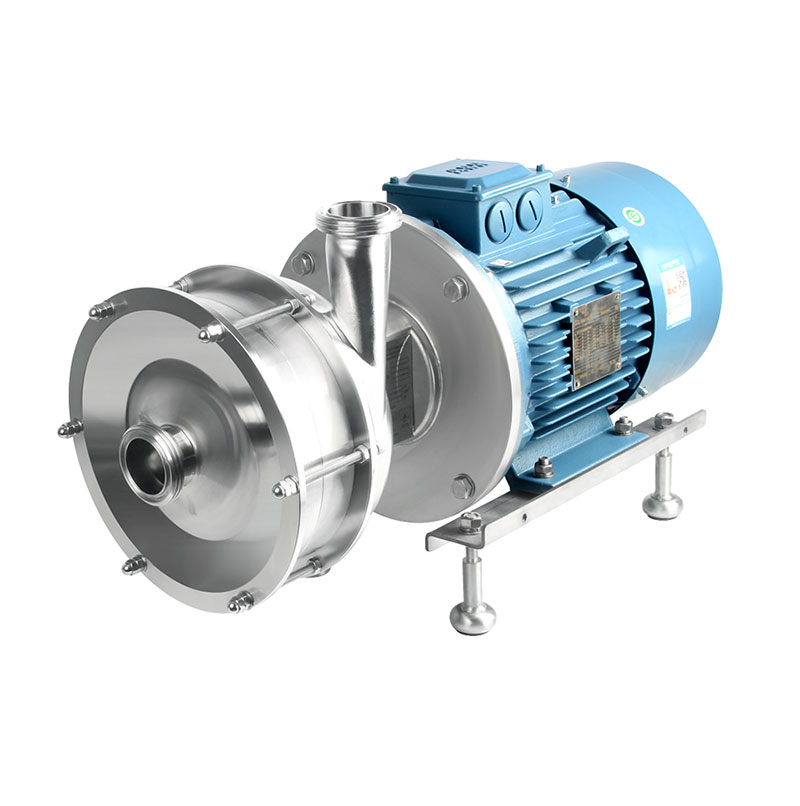

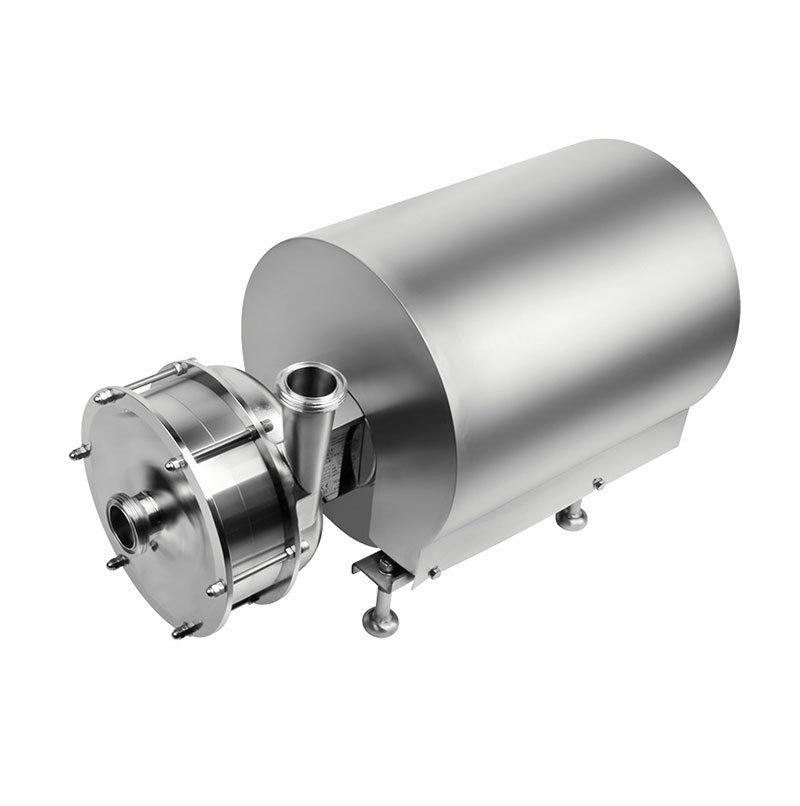

DLX series centrifugal pump is a horizontal multi-stage open impeller centrifugal pump, it is hygienic, efficient, the highest head can reach 210m (21bar), and it can convey the medium softly. Mainly used in food and beverage, dairy, brewery carbonation process, CIP feed, pharmaceutical industry, pure water pumping (WFI water for injection), biotech production, infusion (nutrient solution, ethanol) filling stations, personal care, Soap, skin cream, lotion industry, purification process (CIP system), water technology process, semiconductor production, metal surface treatment, etc.
