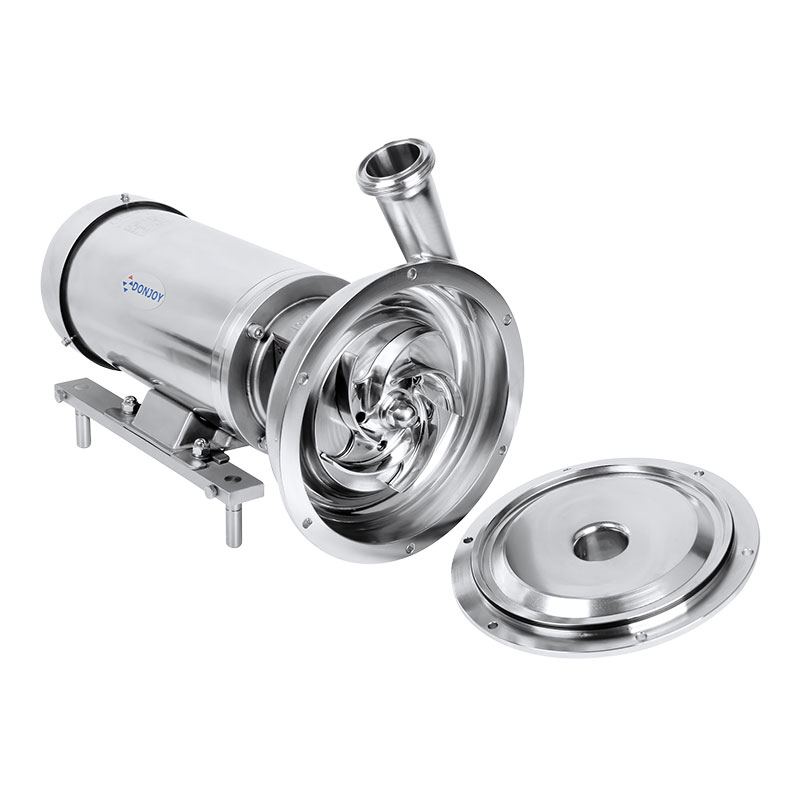

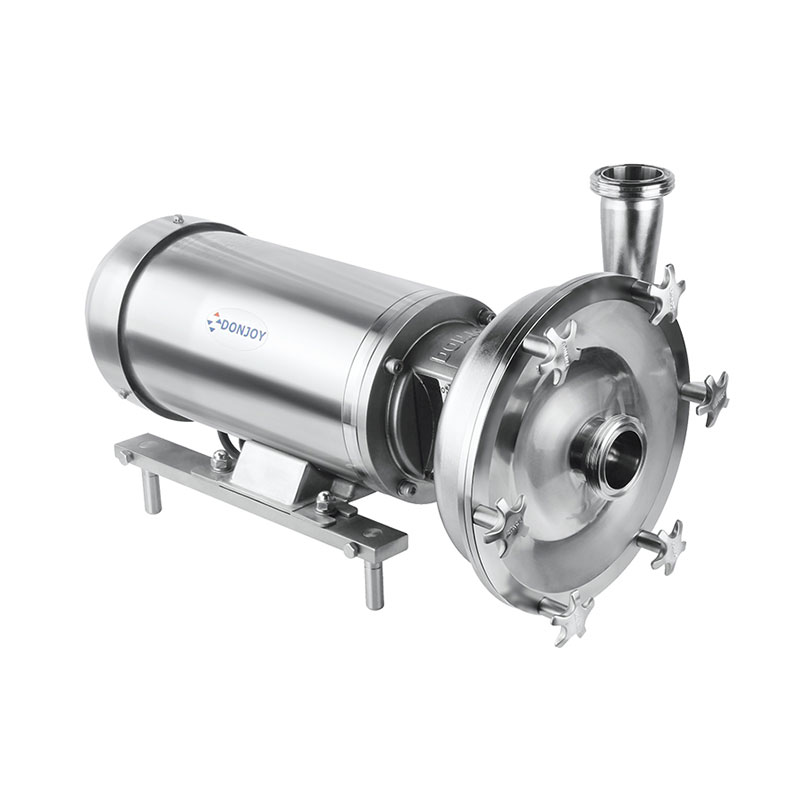

Cleaner, with stainless steel motor, IP69 protection level

Technical Specifications

Flow：0.5m3/h-120m3/h
Head：70M
Temperature：-20℃ to 140℃
Power：0.55KW-30KW
Material：304 /316L, 1.4301/1.4404, ASME BPE 316L, 1.4435 BN2 Fe≤0.5% Duplex stainless steel 2205，Hastelloy alloy C276
Surface treatment：≤ Ra0.8μm, ≤ Ra0.6μm, EP≤ Ra0.4μm
Mechanical seal： Single mechanical seal, double mechanical seal, details see configuration table
Inlet/Outlet Connection： Thread, Clamp, Flange, Aseptic flange
Certification：3-A-02-12(N.O.1579); MD/06/42-EC(N.O.70521616101-00);FDA 177.2600; USP CLASS-II; EG/VO1935/2004
